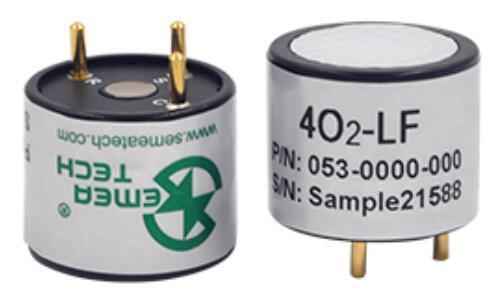

4-Series O2-LF Sensor
This sensor is designed for the measurement of Oxygen concentration in gas phase.
{{btnText}}
SPECIFICATION
Product Description
This sensor is designed for the measurement of Oxygen concentration in gas phase. It can be used as the pin-to-pin replacement of the standard 4-series electrochemical Oxygen sensors made by the other manufacturers.
Performance Characteristics
| Nominal Range | 0 ~ 25% vol oxygen |
| Maximum Overload | 30% vol oxygen |
| Output Signal (20℃) | 100 ± 20 μA in air |
| Response Time (T90) | ≤ 15 s |
| Zero Signal (20℃) | ±0.5% vol oxygen |
| Resolution | 0.1% vol oxygen |
| Linearity | The error is <±5%FS or <0.3%vol, whichever is the less. Theoretical formula: K*Ln(1/(1-c)) |
| Bias Voltage | -600 mV |
| Warm Up Time | 15 minutes |
| Repeatability | < ±5% |
DATA SHEET
